Description

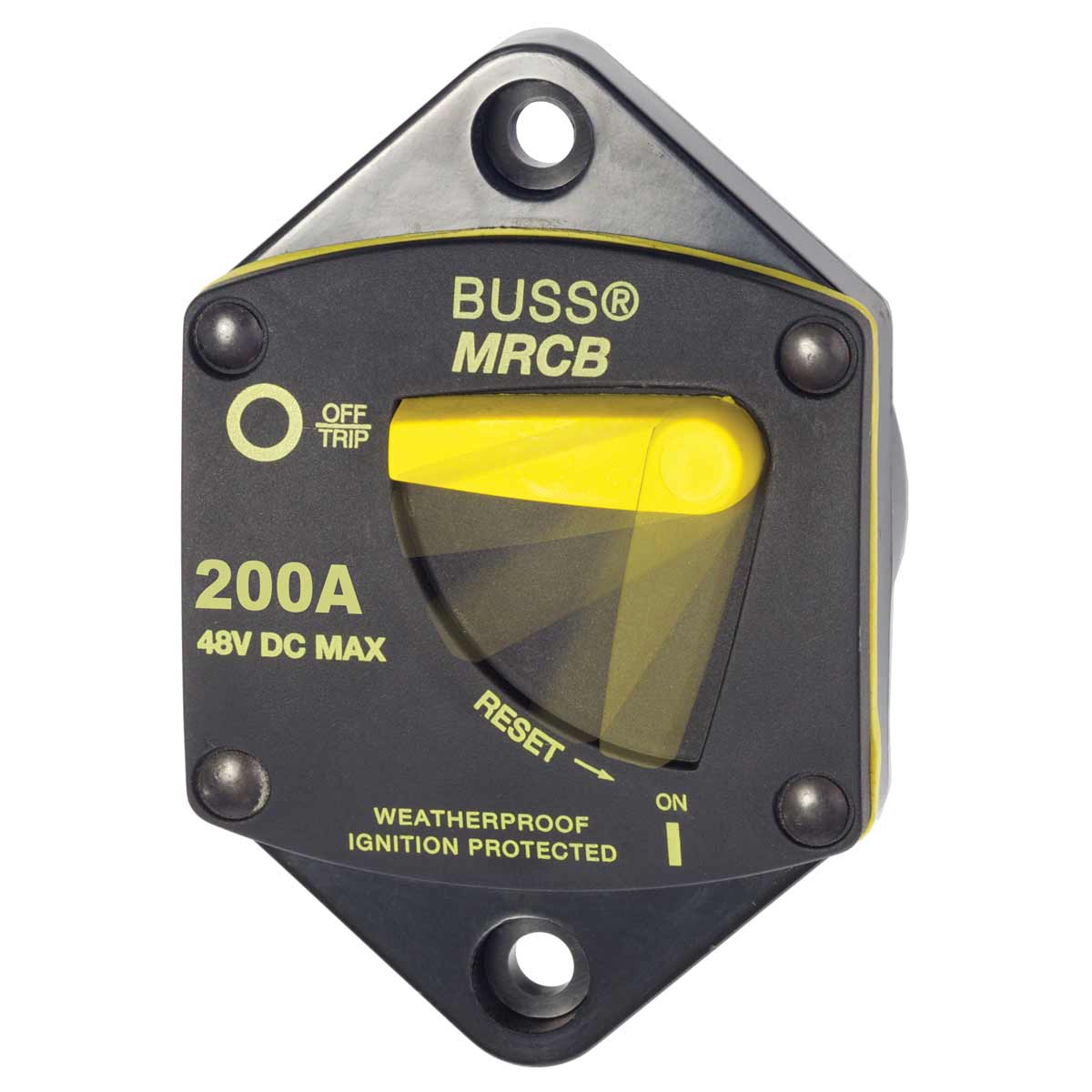

Provides heavy duty circuit protection for 25 to 200 Amp loads when switching and circuit protection are both required.
Single lever operation – clearly visible
Trip-free – cannot be held closed after trip
Self-trimming case eliminates need for mounting panels or trim bezels
Round case for easy installation with standard sized hole saw (panel mount)
Large clearance around terminal studs accepts up to 1/0 AWG lugs
Recessed mounting holes for clean appearance
Robust 5 / 16″-18 terminals provide high torque connections
Regulatory
CE marked
Meets SAE J1171 external ignition protection requirements
IP66 – protected against powerful water jets
