Description

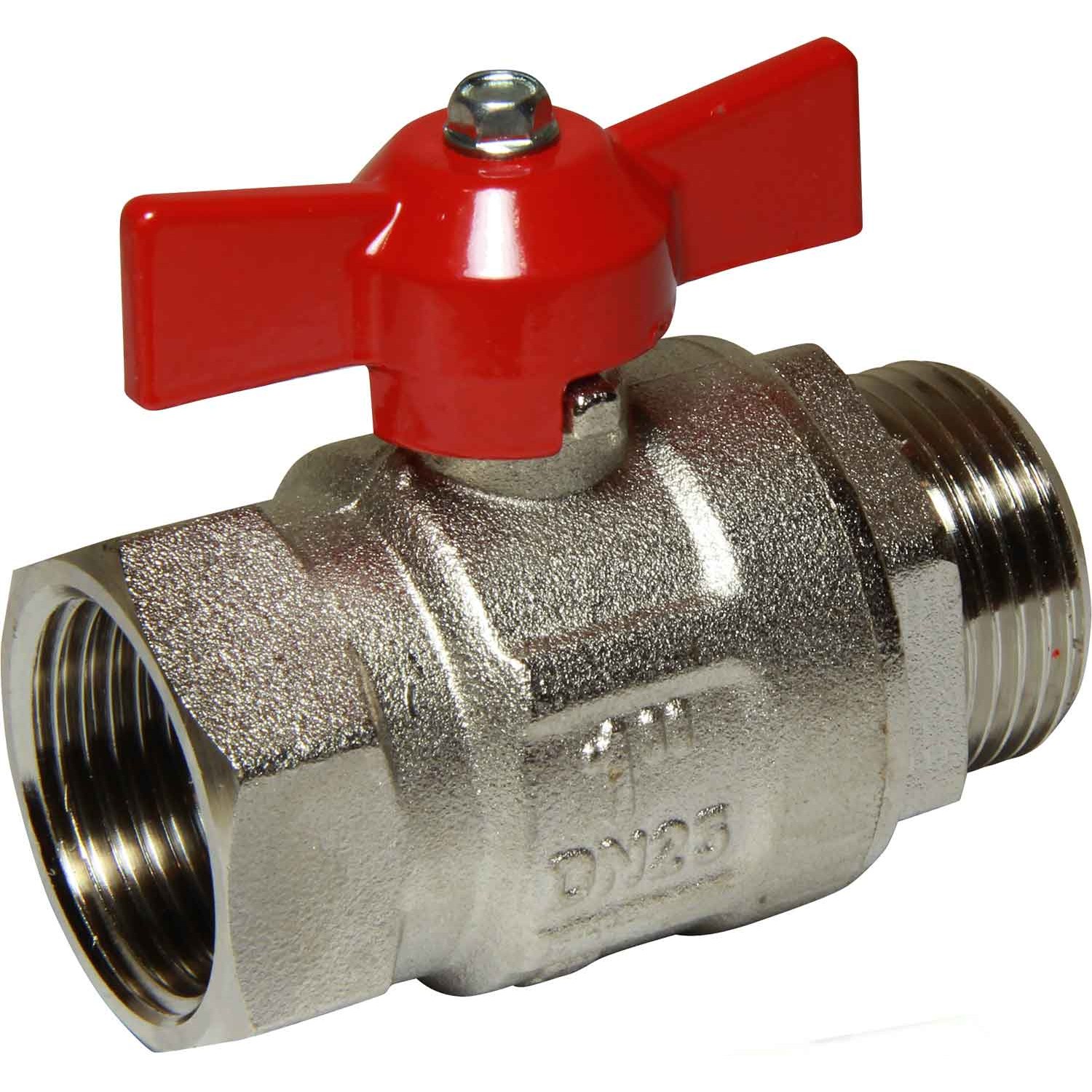

Good quality full flow ball valves at competitive prices. Suitable for industrial pneumatic & hydraulic installations including gasoline fuel oils kerosene petrol & diesel. Ideal for hot & cold water different oils & compressed air.
Minimum 100,000 operation design
90 degree movement by either lever or tee handle
Materials:
Body: Nickel plated brass CW 617N
Ball: Hard chrome-plated brass CW 617N
Stem: Brass CW 614N
Seal: Pure Teflon (PTFE)
O Rings: Viton / NBR
Tee Handle: Red coated aluminium UNI 5076
Working Temperatures:
-20 Degrees C 150 Degrees C in absence of steam
WARNING the formation of ice can severely damage valves & piping
Technical Specification
BSP Parallel Thread ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228)
Bar* – Pressure Atmosphere Kg/cm Cubed
PSI* – LBS Working Pressure.
