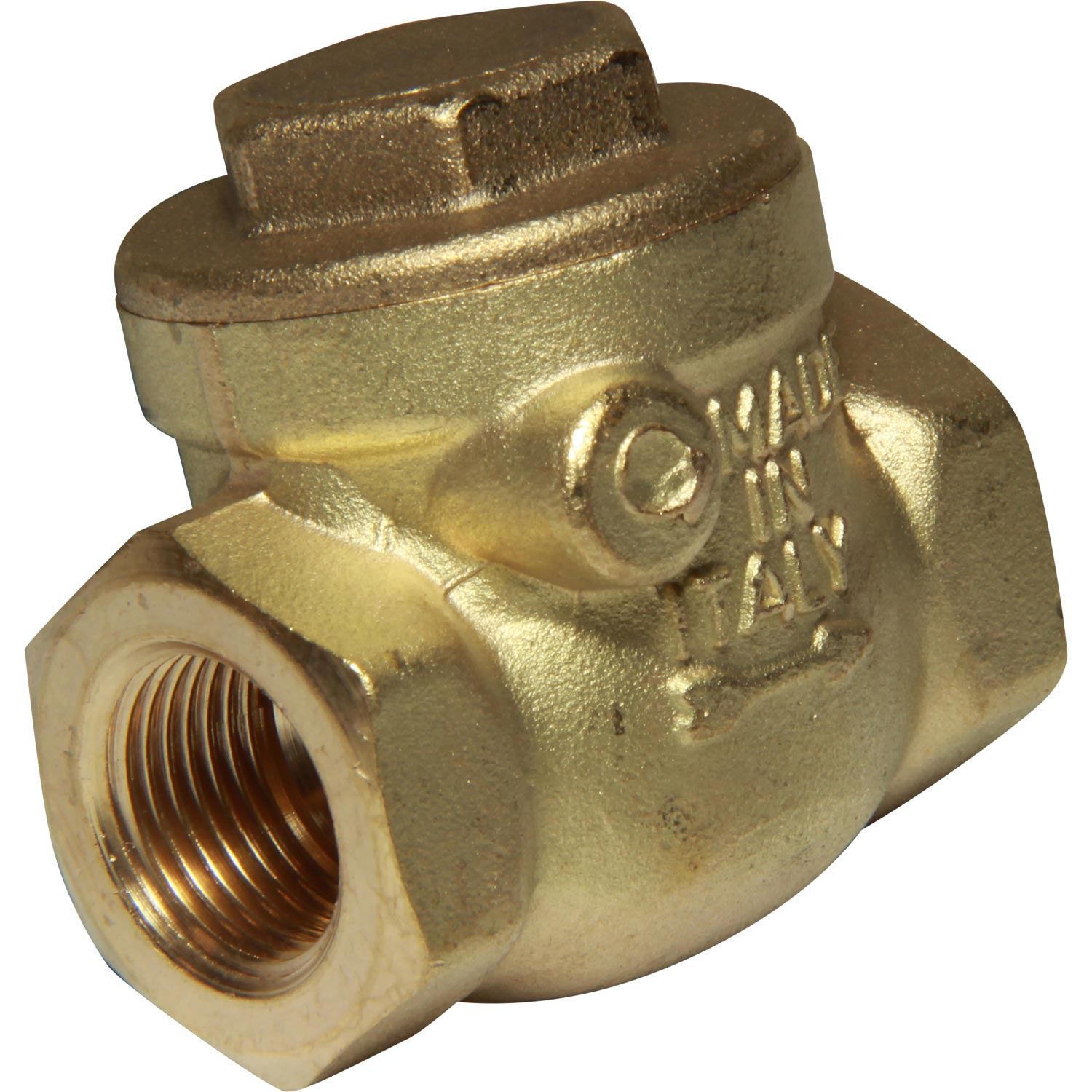

The check valve is constructed from brass and is suitable for horizontal and vertical mounting. The inline check valve is swing operated and has a metal seat for the flap. This check valve has 3/8 inch BSP female threaded ports.
Thread: 3/8″ BSP
A: 43mm
B: 50mm
12 Bar*
170 PSI*
Bar* – Pressure Atmosphere kg/cm3. PSI* – LBS working pressure.
Please Note: It is not recommended to use this check valve for connection to below waterline intakes.
2 in stock
Need more? Request a custom quote for larger quantities
The check valve is constructed from brass and is suitable for horizontal and vertical mounting. The inline check valve is swing operated and has a metal seat for the flap. This check valve has 3/8 inch BSP female threaded ports.
Thread: 3/8″ BSP
A: 43mm
B: 50mm
12 Bar*
170 PSI*
Bar* – Pressure Atmosphere kg/cm3. PSI* – LBS working pressure.
Please Note: It is not recommended to use this check valve for connection to below waterline intakes.
| Material | Brass |
|---|---|
| Primary Construction | Brass |
| Thread Connection | BSP |
| Thread Size | 3/8" |
| Thread Gender | Female |
| Valve Design | Check Valve / Non – Return |
| Maximum Pressure | 170 psi |
| Thread Size Description | 3/8" BSP Female |
| Brand | AG |
