Description

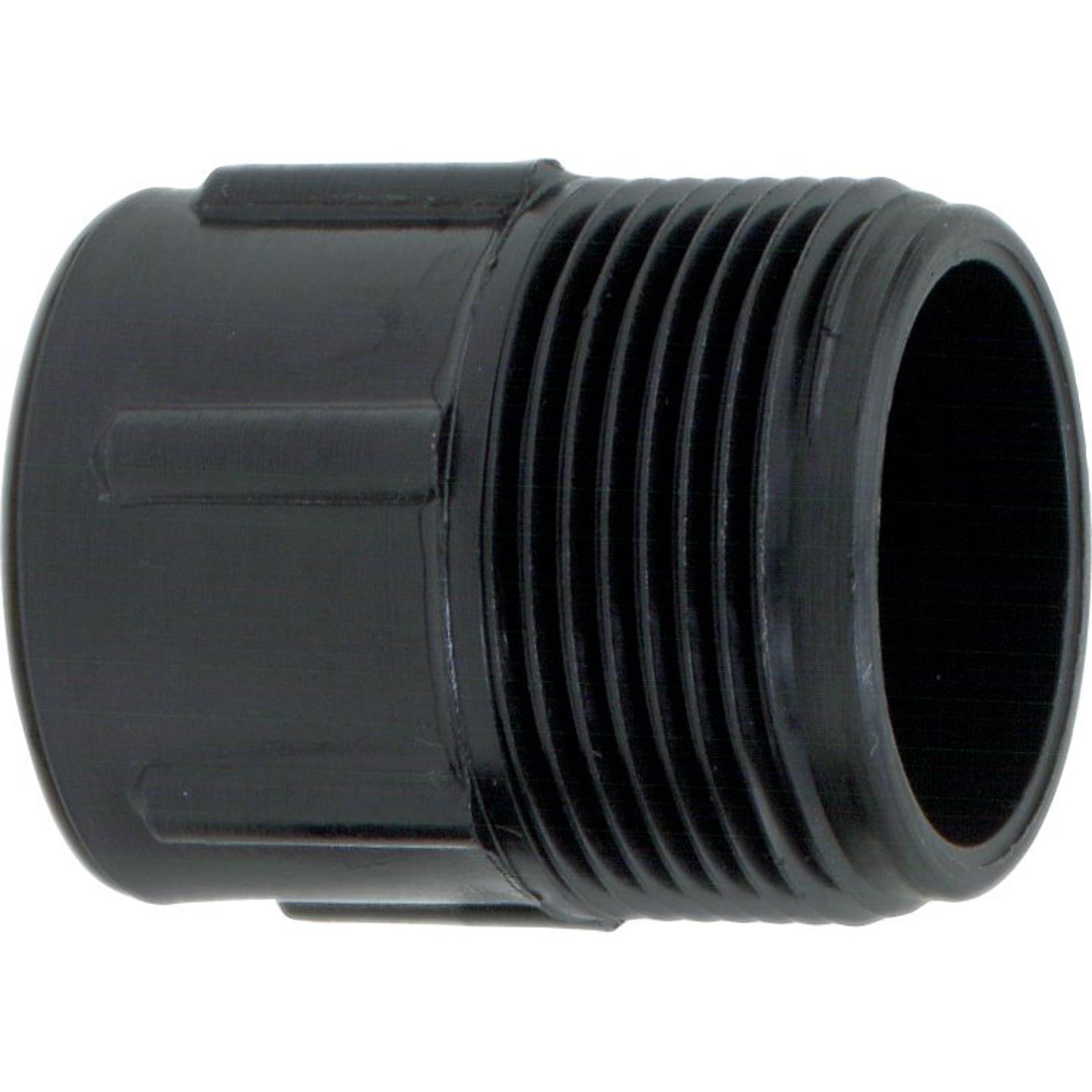

AG plastic threaded coupling fitting is made of polypropylene with a 1-1/2″ BSP male thread one end and a 1-1/4″ BSP female thread the other end.
| Dimensions | 5.3 × 3.8 cm |
|---|---|
| Material | Polypropylene |
| Fitting | Coupling |
| Primary Construction | Plastic |
| Thread Connection | BSP |
| Thread Size | 1-1/4", 1-1/2" |
| Thread Gender | Female, Male |
| Pressure Rating | 10 Bar maximum |
| Replaces | 3-85250 |
| Thread Size Description | 1-1/2" BSP Male to 1-1/4" BSP Female |
| Brand | AG |
| Length | Overall: 53mm, Male Thread: 24mm, Female Thread: 25mm |
| Temperature Range | 40°C maximum |
| Diameter Description | ID at Male Thread: 38mm, OD at Female Thread: 53mm |
| Country of Origin | Italy |
| Angle | Straight |
