AG L Port Ball Valve LP 3/8″ BSP

Name: AG L Port Ball Valve LP 3/8" BSP - Marine Chandlery
SKU: 1-71810
Price: 41.28 GBP
Availability: OutOfStock

SKU: 1-71810 MPN: 1150N203

cancel Out of Stock

£41.28 exc VAT

Prices exclude VAT. Trade pricing available on request.

info Quick Overview

Description

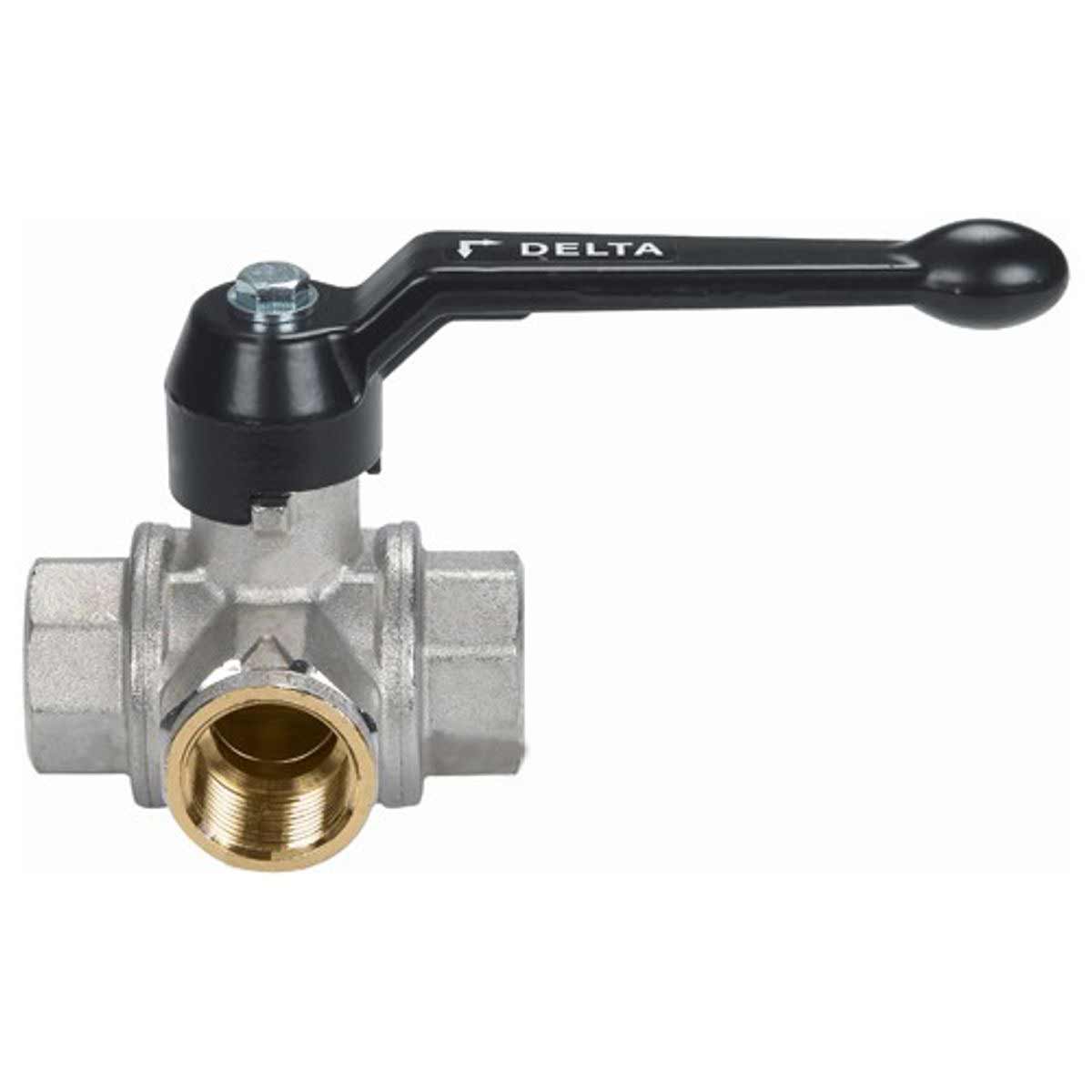

The Delta L-port ball valve 3/8″ is made in Nickel plated Brass (CW617N) with chromed brass ball (CW617N), PTFE seats and Aluminium alloy lever handle.

‘L’ Port allows two of three ports open only i.e. for diverting

10 Bar maximum pressure limit

For fluids from -10°C to +100°C

Full bore

Dimension G = Female Taper Thread ISO 7/1 (UNI EN 10226)

The direction of the flow is shown by the marking on the lever.

Position A: from position B the handle is operated by a Clockwise quarter turn.

Position B: from position A the handle is operated by a Anticlockwise quarter turn.
