Description

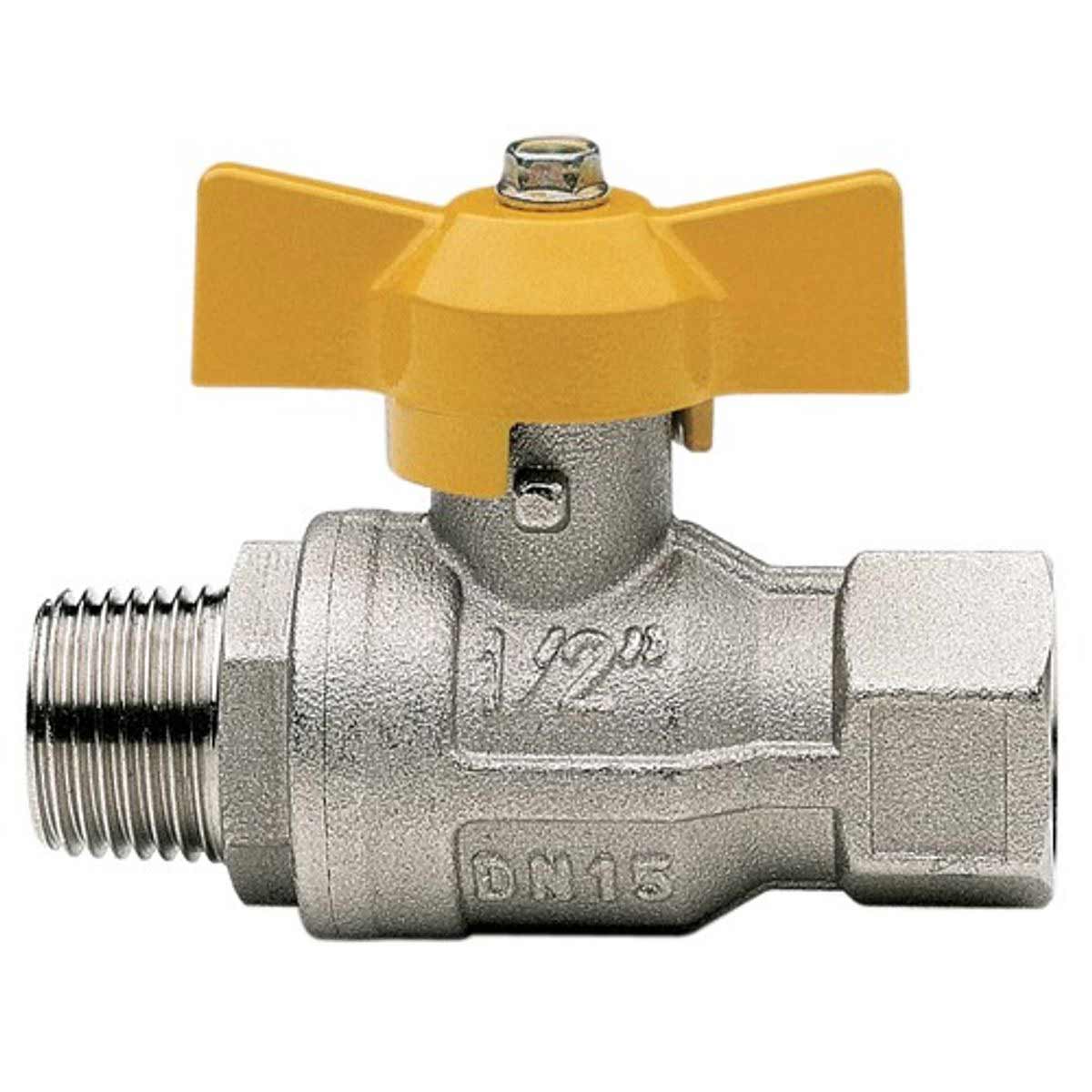

A quality Italian made, high specification ball valve. Ideal for Gas. Also suitable for hot and cold water. compressed air, pneumatic, hydraulic and most industrial fluids.
Features:
Quarter turn operation
100% full bore
Individually Tested
EN331 approved
Materials:
Body: Nickel plated brass CW 617N
Ball: Hard chrome-plated brass CW 617N
Stem: Brass CW 614N
Seal: Pure Teflon (PTFE)
O Rings: Viton / NBR
Lever Handle: Yellow coated zinc-plated steel Fe. P04
Tee Handle: Yellow coated aluminium UNI 5076
Working Temperatures: -20°C to +60°C
WARNING the formation of ice can severely damage valves & piping
Technical Specification
Male: BSP Taper Thread – ISO 7/1R BS21 DIN 2999
Female BSP Parallel Thread ISO 7/1R BS21 DIN 2999 (equivalent to DIN EN 10226-1 and BS EN 10266-1)
Dim A: 77mm
Dim B: 32mm
Dim C: 47mm
Dim D: 54mm
Dim E: 15mm
Dim CH: 25mm
5 Bar*
72.5 PSI*
Bar* – Pressure Atmosphere Kg/cm Cubed
PSI* – LBS Working Pressure
